Monitor 3150RBDJ - 31.1m Spider Lift - 10004VLL
$199,900
Max. Working Height:
31.10 m
Max. Working Reach:
12.60 m
Capacity:
200 kg
Chassis Type:
Crawler Tracks
Hydraulic Fly Boom:
Yes
Platform Rotation:
Yes
Weight/Outreach Limited:
Yes
Turret Rotation:
710°
Outrigger Stabilisers:
Yes
Min. Transport Length:
7.54 m
Min. Transport Width:
1.36 m
Min. Transport Height:
1.99 m
Weight:
4,300 kg

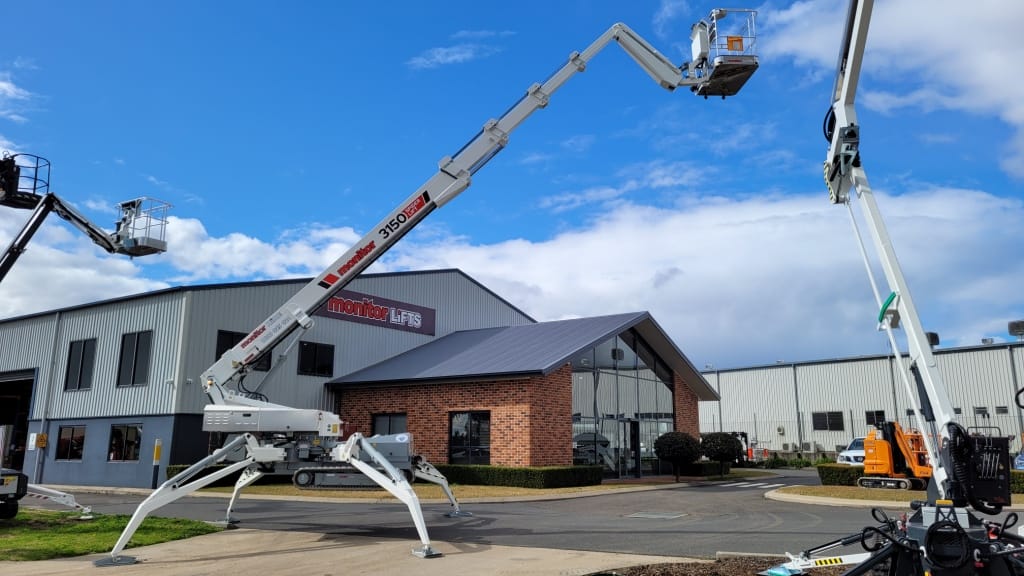

2020 model Omme 3150 Stick Boom Spider Lift

• Dual power incl 20 hp Kubota diesel
• 24 v on board battery system
• Electric emergency lowering system
• Hetronic radio control drive
• Fly jib
• Platform rotation
• Non marking tracks

This 31 m Spider Lift weighs only just over 4 t which means it is very suited for use on load-limited flooring. It also makes transport very economical.

Variable position stabiliser legs and compact dimensions allow it to set up and operate almost anywhere.

The incredibly compact dimensions of the Omme allow it to be driven up narrow ramps. Being radio-controlled, the Omme can be carefully maneuvered through tight areas. The soft non-marking rubber tracks ensure there is no damage to fragile surfaces. Driven into position, the legs are quickly set up and away we go to previously inaccessible places! Being able to also safely elevate on sloping terrain, the Omme is just as at home off-road making it the ideal machine for tasks such as bridge maintenance and tree lopping in all types of locations.

In 1997, Monitor Lifts introduced the first spider lift into the Australasian market. Monitor Lifts are the leading supplier of Spider Lifts and other specialised access equipment in Australia and New Zealand.

2-Man Platform
240 Volt Battery System
240 Volt Battery System (Optional)
Air & Water Outlet in Platform
Auto-Level Stabilizer Legs
Basket Load Control
Crawler Tracks
Electric Controls
Electric Emergency Lowering System (Optional)
Expandable Crawler Tracks (Optional)
Fly Jib
Hydraulic Controls
Kubota Diesel Engine
Non-Marking Rubber Tracks
Platform Rotation
Radio Control Drive

Working Range & Dimensions
