Monitor 2714 Spider Lift with awesome outreach:
- 2 speed drive
- Hydraulically Expanding Tracks system
- Fully radio controlled for all operations, from ground and platform
- Fast boom movements
- “Go home” auto stow function
- Auto level stabilizer legs
- Air & water outlets in platform
- 240 volt outlet in platform
- Fly jib …
Monitor 2714 Spider Lift with awesome outreach:
- 2 speed drive
- Hydraulically Expanding Tracks system
- Fully radio controlled for all operations, from ground and platform
- Fast boom movements
- “Go home” auto stow function
- Auto level stabilizer legs
- Air & water outlets in platform
- 240 volt outlet in platform
- Fly jib
- Platform rotation
- 230 kg SWL

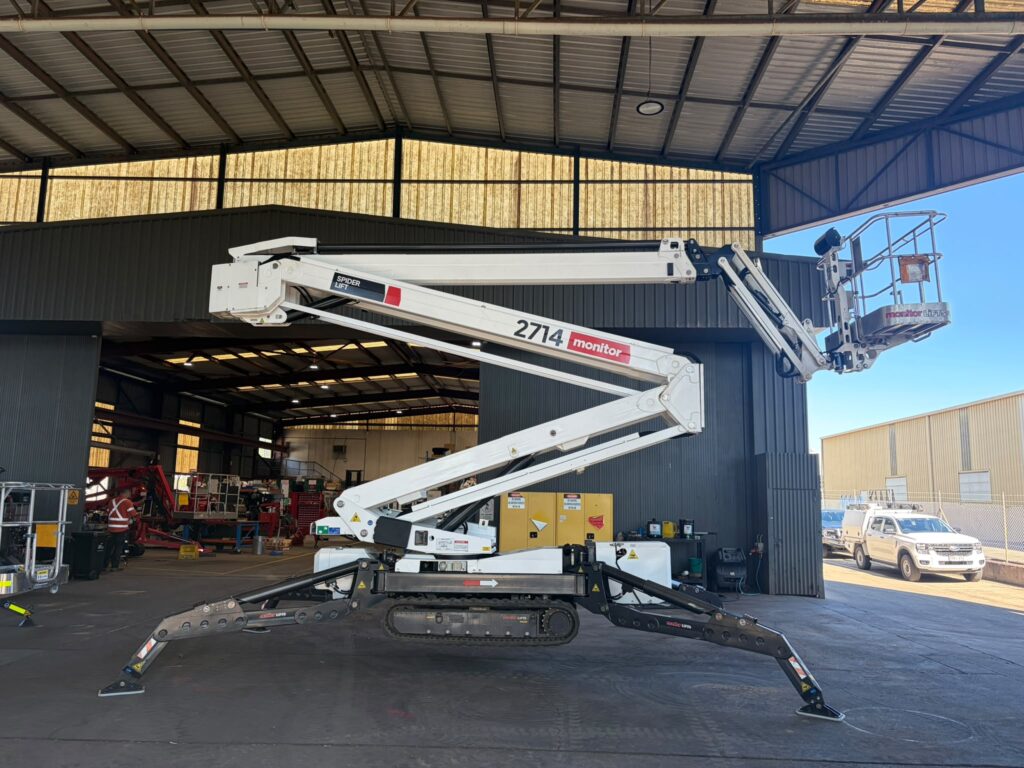

The 2714 Spider never ceases to impress with its huge up-and-over outreach. Stowing to an incredible 890 mm wide, this Spider Lift delivers the most reach from the smallest dimensions. An unbeatable machine for confined area access to taller heights.
The tracks expand to 1290 mm for stability off-road, and retract to only 890 mm which allows the 2714 to go anywhere! Uniquely these Spider Lifts can rotate a full 360 degrees even when the legs are set in the narrow position, and up to 15 m of horizontal outreach can be achieved in the wide set position.
Strength and rigidity are a standout feature of this machine. It has to be experienced to believe how stable this platform is, making it ideal for the heavy duty applications, and it’s still right at home indoors or on fragile surfaces.
In 1997, Monitor Lifts introduced the first spider lift into the Australasian market. Monitor Lifts are the leading supplier of Spider Lifts and other specialised access equipment in Australia and New Zealand.
*Photos are not relevant to the exact machine.
Get in touch with us for more information on the Monitor 2714 ED Spider Lift (SN: PB14279).
Features
•
2-Man Platform
•
240 Volt Battery System (Optional)
•
240 Volt Outlet in Platform
•
Air & Water Outlet in Platform
•
Auto-Level Stabilizer Legs
•
Basket Load Control
•
Commission Date: 8/1/2024
•
Crawler Tracks
•
Electric & Air Outlets in Basket (Air Optional)
•
Electric Controls
•
Electric Emergency Lowering System (Optional)
•
Expandable Crawler Tracks (Optional)
•
Fly Jib
•
Fully Radio Control Operation (Optional)
•
Hours: 760
•
Hydraulic Hoses Routed inside booms
•
Kubota Diesel Engine
•
Non-Marking Rubber Tracks
•
Platform Rotation
•
Radio Control Drive
•
Warranty: 90 Days Parts Only
Max. Working Height:
27.00 m
Max. Working Reach:
15.10 m
Capacity:
230 kg
Chassis Type:
Crawler Tracks
Hydraulic Fly Boom:
Yes
Platform Rotation:
Yes
Weight/Outreach Limited:
Yes
Turret Rotation:
360°
Outrigger Stabilisers:
Yes
Power:
Honda Petrol & 240V
Min. Transport Length:
5.93 m
Min. Transport Width:
0.89 m
Min. Transport Height:
1.99 m
Weight:
5,200 kg
Monitor 2714 ED Spider Lift — PB14279
Platform Basket
2023
Price:
$254,900 + GST
Price:
$254,900 + GST
Savings:
SAVE $65,000
