The Monitor T320 is a versatile 20 m telescopic truck mounted machine. An agile unit with incredible outreach. It is built to accommodate 2 persons and tools with a maximum rate capacity of 225 kg. It is also equipped with hydraulic controls for lift and stabilisation functions,…
The Monitor T320 is a versatile 20 m telescopic truck mounted machine. An agile unit with incredible outreach. It is built to accommodate 2 persons and tools with a maximum rate capacity of 225 kg. It is also equipped with hydraulic controls for lift and stabilisation functions, providing for a very smooth operation and accuracy even at full height and outreach.

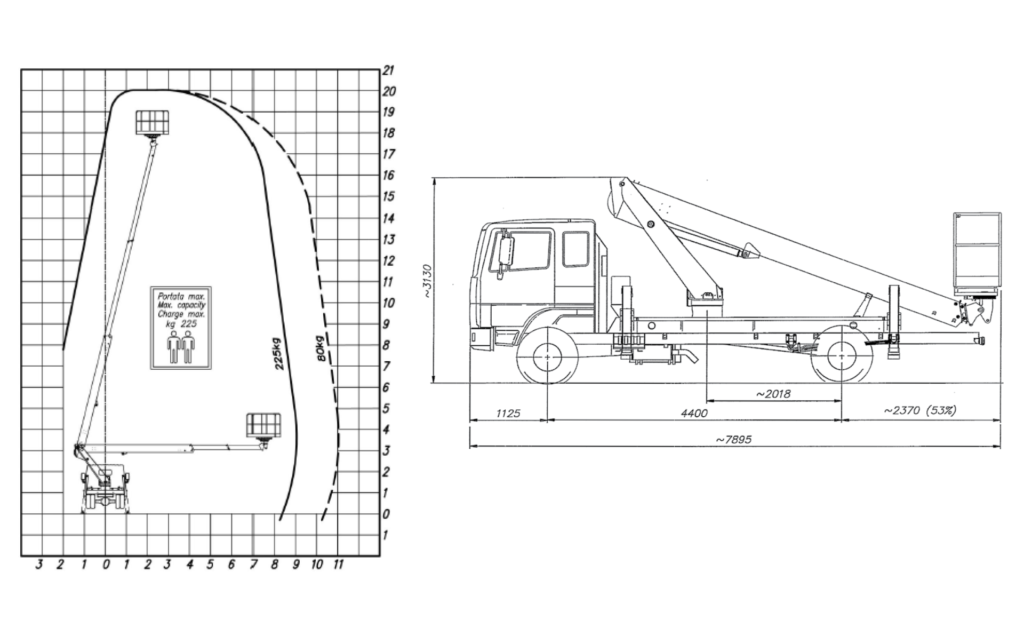

The Monitor T320 is great for application where frequent set-ups are required even in restricted locations thanks to its compact dimensions. It only measures 7.9 m in length, 2.2 m in width, and 3.0 m in stowed height.
Max. Working Height:
20.00 m
Max. Working Reach:
11.00 m
Max. Platform Height:
18.00 m
Capacity:
225 kg
Platform Rotation:
Yes
Turret Rotation:
450°
Min. Transport Length:
7.90 m
Min. Transport Width:
2.20 m
Min. Transport Height:
3.00 m
Power:
PTO from Vehicle
{{ galleryProps.activeIndex + 1 }}/1
Send Enquiry
Max. Working Height:
20.00 m
Max. Working Reach:
11.00 m
Max. Platform Height:
18.00 m
Capacity:
225 kg
Platform Rotation:
Yes
Turret Rotation:
450°
Min. Transport Length:
7.90 m
Min. Transport Width:
2.20 m
Min. Transport Height:
3.00 m
Power:
PTO from Vehicle
