{{ galleryProps.activeIndex + 1 }}/9
Contact for a price
Max. Working Height:
18.50 m
Max. Working Reach:
16.52 m
Max. Platform Height:
14.00 m
Capacity:
250 kg
Turret Rotation:
450°
Min. Transport Length:
7.76 m
Min. Transport Width:
2.40 m
Min. Transport Height:
3.27 m
Power:
PTO from Vehicle
The Monitor E190THD truck mounted lift is a 19 m truck mounted machine. It is known for its exceptional strength and rigidity, combined with its simple and intuitive operation.It is built to accommodate 2 persons and tools with a maximum rated capacity of 220 kg. Even though the Monitor E190THD only weighs 8.5 t, it can still manage 18.52 m of working height, 16.52 m of platform height, and 13.20 m of horizontal reach.
It features internal protected hoses with self-cleaning brushes on the telescopic sections to prevent ingress of dirt and other debris, and is particularly suited to heavy duty applications with its all-steel and strong profile design.

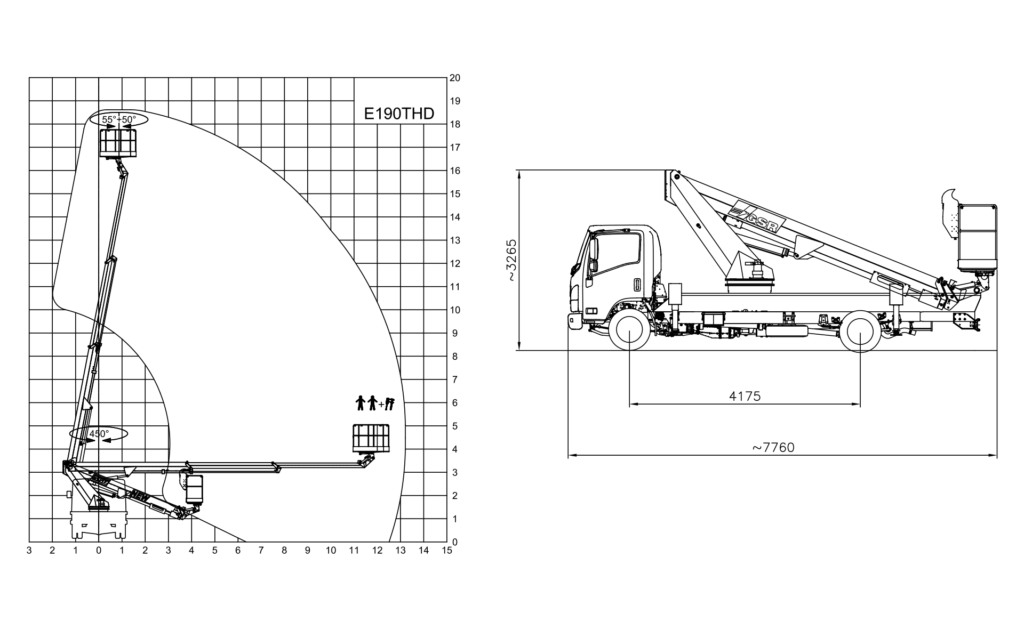

Working Range & Dimensions
{{ galleryProps.activeIndex + 1 }}/1
Send Enquiry
Max. Working Height:
18.50 m
Max. Working Reach:
16.52 m
Max. Platform Height:
14.00 m
Capacity:
250 kg
Turret Rotation:
450°
Min. Transport Length:
7.76 m
Min. Transport Width:
2.40 m
Min. Transport Height:
3.27 m
Power:
PTO from Vehicle
