1/31
Max. Working Height:
22.50 m
Max. Working Reach:
11.20 m
Max. Platform Height:
20.50 m
Capacity:
250 kg
Chassis Type:
Crawler Tracks
Hydraulic Fly Boom:
Yes
Platform Rotation:
Yes
Weight/Outreach Limited:
Yes
Turret Rotation:
440°
Outrigger Stabilisers:
Yes
Min. Transport Length:
5.27 m
Drive Speed:
3.1 km/hr
Power:
Kubota 21 Hp Diesel & 240V Electric Motor
Weight:
2,950 kg
The Monitor 225 Spider Lift is an all-terrain spider lift with unrivaled performance.
Industry-leading all-terrain capabilities, a high-profile track platform and fast driving speeds make the next-generation Leguan 225 a perfect choice for even the most demanding environments. The spider lift’s boom is designed to maximize side reach even at…
Features
•
2-Man Platform
•
230V and USB outlets in Basket
•
Air & Water Outlet in Platform
•
Auto-Level Stabilizer Legs
•
Automatic engine RPM control
•
Battery powered emergency lowering
•
Crawler Tracks
•
Elevated Driving Position
•
Fly Jib
•
High-profile crawler track system
•
Home / Back to work function
•
Hydraulic Hoses Routed inside booms
•
Integrated service display
•
Non-Marking Rubber Tracks (Optional)
•
Radio Control Drive (Optional)
•
Radio control for driving and outriggers
•
Signal horn
•
Start-stop function (e-motor)
•
User-friendly joystick operation

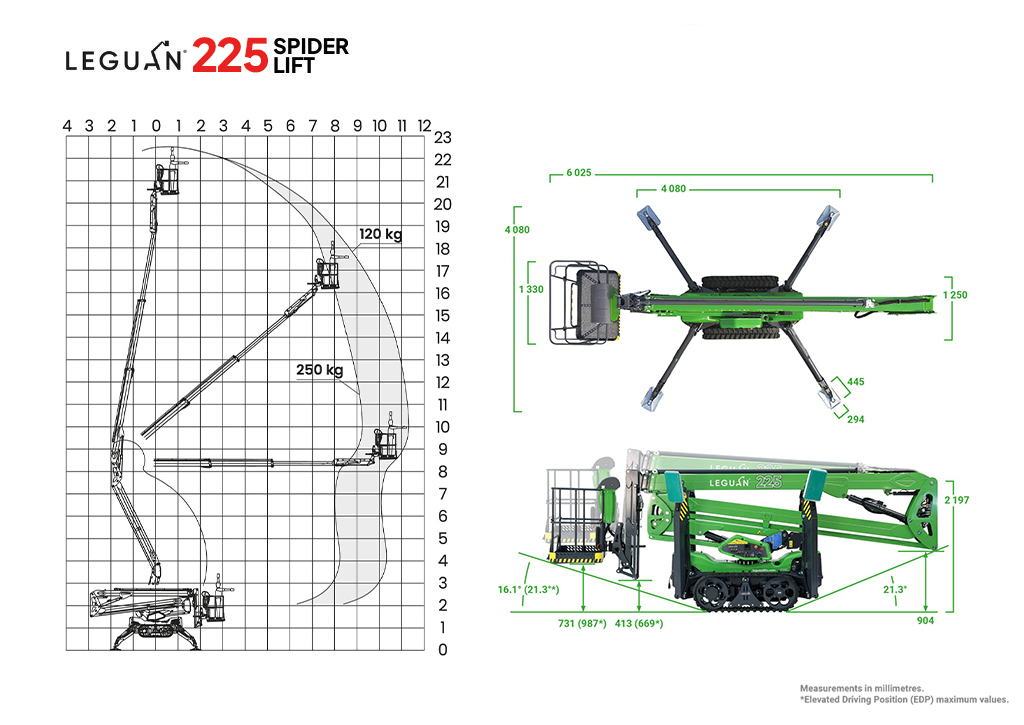

Working Range & Dimensions
1/1
Send Enquiry
Max. Working Height:
22.50 m
Max. Working Reach:
11.20 m
Max. Platform Height:
20.50 m
Capacity:
250 kg
Chassis Type:
Crawler Tracks
Hydraulic Fly Boom:
Yes
Platform Rotation:
Yes
Weight/Outreach Limited:
Yes
Turret Rotation:
440°
Outrigger Stabilisers:
Yes
Min. Transport Length:
5.27 m
Drive Speed:
3.1 km/hr
Power:
Kubota 21 Hp Diesel & 240V Electric Motor
Weight:
2,950 kg
