Leguan 265 Spider Lift
Max. Working Height:
26.50 m
Max. Working Reach:
13.50 m
Max. Platform Height:
24.40 m
Capacity:
250 kg
Chassis Type:
Crawler Tracks
Hydraulic Fly Boom:
Yes
Platform Rotation:
Yes
Weight/Outreach Limited:
Yes
Turret Rotation:
360°
Outrigger Stabilisers:
Yes
Drive Speed:
3.1 km/hr
Power:
Kubota 21 Hp Diesel, 230V Electric Motor
Weight:
3,920 kg

Introducing the next generation in spider lift technology, the Leguan 265 redefines excellence with its unmatched all-terrain capabilities, robust track platform, and impressive driving speeds. Designed to conquer the toughest environments, the 265’s advanced boom design delivers maximum side reach even at greater heights, while the cutting-edge joystick control guarantees seamless, precise and safe movements.

The Leguan 265 is designed for safe operation directly from the platform, allowing for extremely fast setup on the worksite without the need for manual track width adjustments or lifting the jib boom. Simple and intuitive joystick controls guarantee smooth and precise boom movements. The ergonomic joystick is also used to control the lift’s track base. Integrated in the lower control panel, the Leguan service display presents key information on the lift’s status, speeds up troubleshooting and enables technical support also remotely.

The Leguan 265 offers an impressive side reach of 13.5 meters. Even more remarkable is its ability to maintain a side reach of up to 10.9 meters with a maximum workload of 250 kg. Combined with the market’s fastest boom movements, the Leguan 195 delivers unrivaled efficiency for working at height.

2-Man Platform
4WD
Crawler Tracks

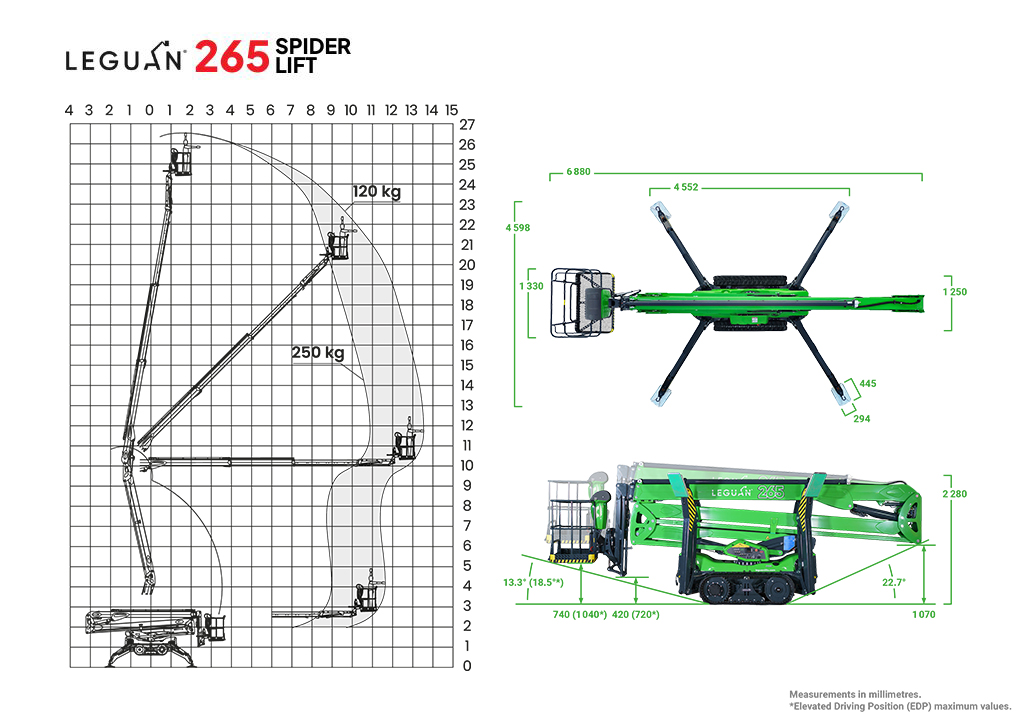

Working Range & Dimensions
