Leguan 170 Spider Lift

Send Enquiry

LEGUAN 170 is the newest model completing the all-terrain spider lift range. Designed with the same proven DNA as the flagship Leguan 195, 225 and 265 models, the 170 delivers rugged Finnish engineering and true off-road capability in a compact, highly versatile package. Like all Leguan all-terrain series models, the…

Max. Working Height:
16.80 m
Max. Working Reach:
8.90 m
Max. Platform Height:
14.70 m
Capacity:
250 kg
Chassis Type:
Crawler Tracks
Hydraulic Fly Boom:
Yes
Platform Rotation:
Yes
Weight/Outreach Limited:
Yes
Outrigger Stabilisers:
Yes
Drive Speed:
2.9 km/hr
Power:
Kubota 14 hp diesel or 230 V / 2.2 kW electric
Weight:
2,530 kg

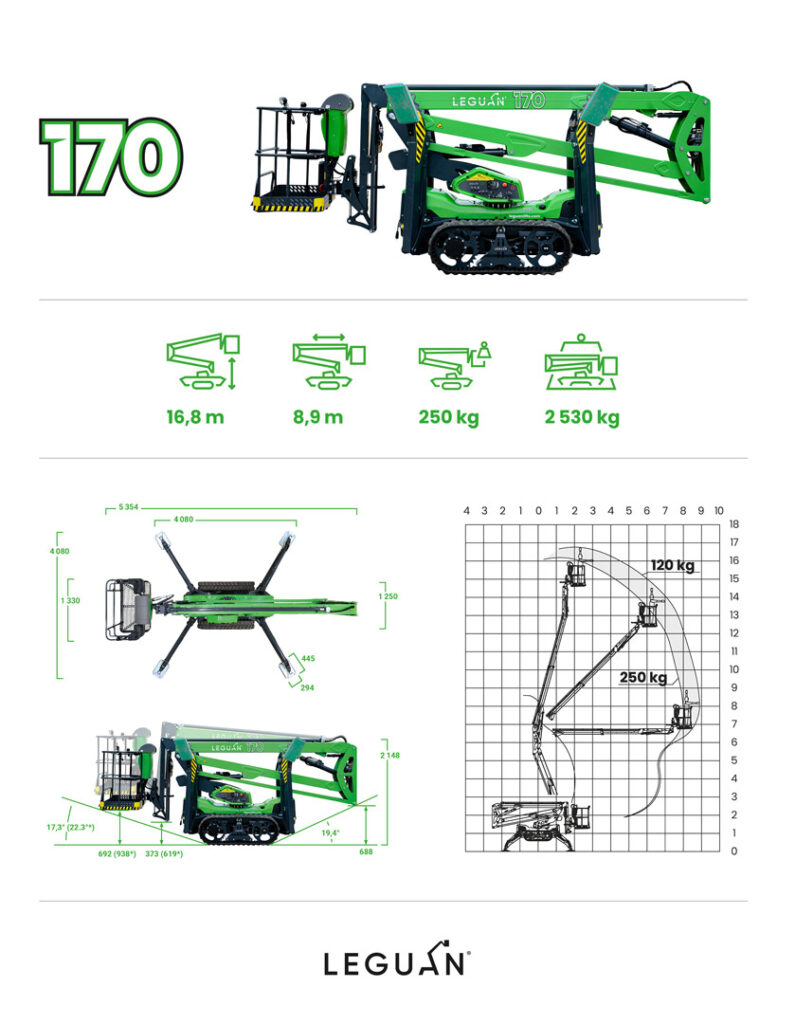

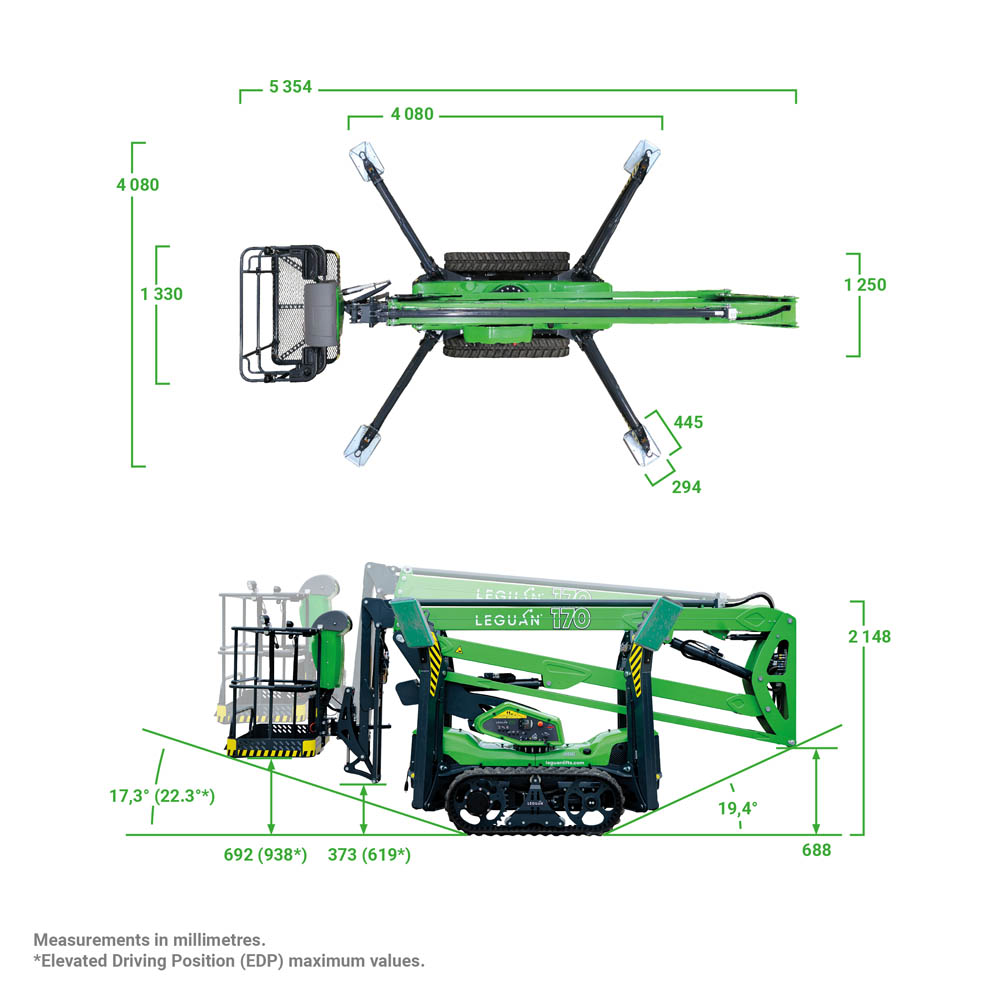

Working Range & Dimensions
