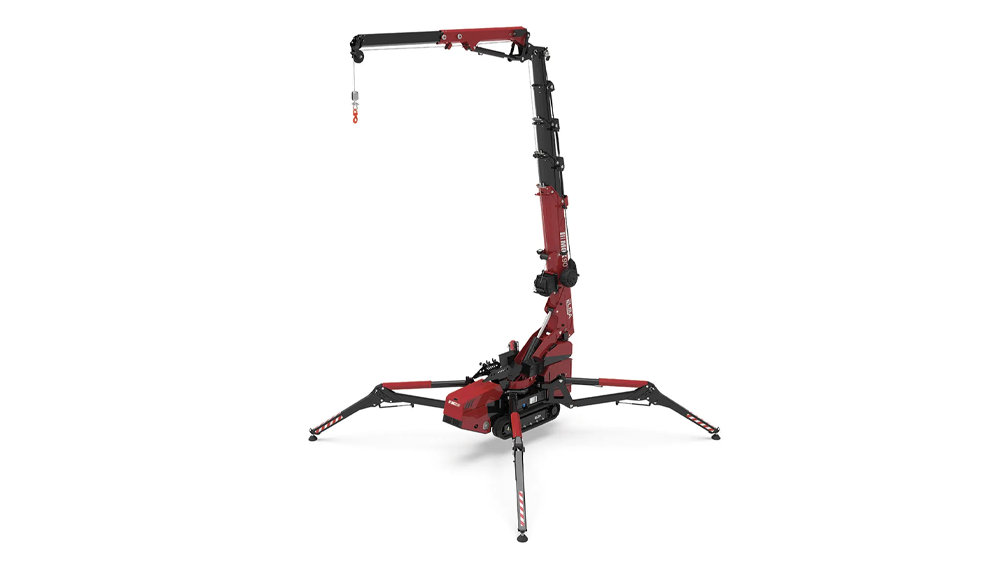

The mini crawler crane MCX90 is a machine designed to deliver high performance in a compact and versatile format. With a weight below 3T, it can be easily transported on a 3.5T trailer, making it an ideal solution for jobs requiring frequent relocations.
This crane can work with or without a jib, reaching a maximum height…
The mini crawler crane MCX90 is a machine designed to deliver high performance in a compact and versatile format. With a weight below 3T, it can be easily transported on a 3.5T trailer, making it an ideal solution for jobs requiring frequent relocations.
This crane can work with or without a jib, reaching a maximum height of 19 meters and a lifting capacity of 9Tm. Thanks to the integrated sensor technology, operators can constantly monitor the load position, ensuring maximum precision and safety during use.
The pick-and-carry mode enables the transport of loads up to 250 kg, increasing the operational versatility of the model.
The double articulation with a foldable jib, which can be stored inside the machine in a dedicated cradle, allows the MCX90 to overcome height obstacles and position the load with extreme precision. Additionally, the MCX90, when folded, fits through standard doors, ensuring maximum flexibility in confined spaces.
Finally, the mini crawler crane features a remote control and an integrated color diagnostic display, providing intuitive and detailed control over all operations.
Motorization
The machine is available in two motorization options:
- Diesel Kubota + 230Vac electric pump, for traditional efficiency.
- Manganese 48Vdc battery up to 180Ah, offering a sustainable and high-performance alternative.
Optional
- Retractable tracks
- White tracks
- 230Vac electric pump
- 2-stage hydraulic jib
- Winch for direct pull 1.5T
- Double pull winch kit
- Quadruple pull winch kit
- Glass-handling system
- Modular battery pack from 120 to 240 Ah at 48Vdc
Working Range & Dimensions
The mini crawler crane MCX90 is a machine designed to deliver high performance in a compact and versatile format. With a weight below 3T, it can be easily transported on a 3.5T trailer, making it an ideal solution for jobs requiring frequent relocations.
This crane can work with or without a jib, reaching a maximum height…
The mini crawler crane MCX90 is a machine designed to deliver high performance in a compact and versatile format. With a weight below 3T, it can be easily transported on a 3.5T trailer, making it an ideal solution for jobs requiring frequent relocations.
This crane can work with or without a jib, reaching a maximum height of 19 meters and a lifting capacity of 9Tm. Thanks to the integrated sensor technology, operators can constantly monitor the load position, ensuring maximum precision and safety during use.
The pick-and-carry mode enables the transport of loads up to 250 kg, increasing the operational versatility of the model.
The double articulation with a foldable jib, which can be stored inside the machine in a dedicated cradle, allows the MCX90 to overcome height obstacles and position the load with extreme precision. Additionally, the MCX90, when folded, fits through standard doors, ensuring maximum flexibility in confined spaces.
Finally, the mini crawler crane features a remote control and an integrated color diagnostic display, providing intuitive and detailed control over all operations.
Motorization
The machine is available in two motorization options:
- Diesel Kubota + 230Vac electric pump, for traditional efficiency.
- Manganese 48Vdc battery up to 180Ah, offering a sustainable and high-performance alternative.
Optional
- Retractable tracks
- White tracks
- 230Vac electric pump
- 2-stage hydraulic jib
- Winch for direct pull 1.5T
- Double pull winch kit
- Quadruple pull winch kit
- Glass-handling system
- Modular battery pack from 120 to 240 Ah at 48Vdc
Working Range & Dimensions
