Max. Working Height:
43.18 m
Max. Working Reach:
18.69 m
Capacity:
330 kg
Chassis Type:
Crawler Tracks
Hydraulic Fly Boom:
Yes
Platform Rotation:
Yes
Weight/Outreach Limited:
Yes
Turret Rotation:
360°
Outrigger Stabilisers:
Yes
Min. Transport Length:
8.39 m
Min. Transport Width:
1.41 m
Min. Transport Height:
1.99 m
Power:
Kubota 37 Hp Diesel, Batteries
Weight:
12,920 kg

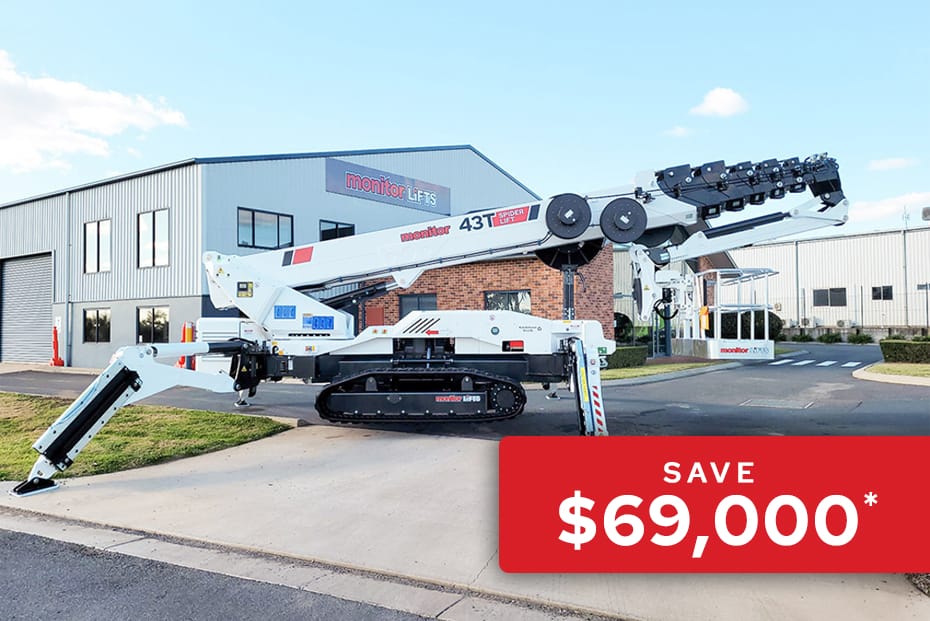

The Monitor 43T Spider Lift is truly a formidable weapon with its massive 43 m of working height, and over 17 m of horizontal outreach.
With a basket capacity of 330kg, this machine has the ability to tackle the biggest jobs where size really does matter. Enormous stabilizer leg travel allows the Monitor 43T to set up and operate in the most challenging terrain. The Monitor 43T’s powerful track drive will ensure it gets to the location with ease.
And yet, with its unique double telescopic articulated booms, this machine will also allow operators to maneuver the basket into the work zone with fine precision.
Get in touch with us for more information on the Monitor 43T LBD Spider Lift (SN: PB13252).
Lift Features
•
2 Speed Drive
•
2-Man Platform
•
240 Volt Battery System
•
240 Volt Battery System (Optional)
•
240 Volt Outlet in Platform
•
Air & Water Outlet in Platform (Optional)
•
Auto-Level Stabilizer Legs
•
Basket Load Control
•
Crawler Tracks
•
Electric & Air Outlets in Basket (Air Optional)
•
Electric Controls
•
Electric Emergency Lowering System
•
Expandable Crawler Tracks
•
Fully Radio Control Operation (Optional)
•
Hydraulic Hoses Routed inside booms
•
Kubota Diesel Engine
•
Platform Rotation
•
Radio Control Drive
•
Telescopic Fly Jib
Working Range & Dimensions
{{ galleryProps.activeIndex + 1 }}/1
Send Enquiry
SAVE $69,000 + GST
Max. Working Height:
43.18 m
Max. Working Reach:
18.69 m
Capacity:
330 kg
Chassis Type:
Crawler Tracks
Hydraulic Fly Boom:
Yes
Platform Rotation:
Yes
Weight/Outreach Limited:
Yes
Turret Rotation:
360°
Outrigger Stabilisers:
Yes
Min. Transport Length:
8.39 m
Min. Transport Width:
1.41 m
Min. Transport Height:
1.99 m
Power:
Kubota 37 Hp Diesel, Batteries
Weight:
12,920 kg
