Monitor 43T Spider Lift
Max. Working Height:
43.18 m
Max. Working Reach:
18.69 m
Capacity:
330 kg
Chassis Type:
Crawler Tracks
Hydraulic Fly Boom:
Yes
Platform Rotation:
Yes
Weight/Outreach Limited:
Yes
Turret Rotation:
360°
Outrigger Stabilisers:
Yes
Min. Transport Length:
8.39 m
Min. Transport Width:
1.41 m
Min. Transport Height:
1.99 m
Power:
Kubota 37 Hp Diesel, Batteries
Weight:
12,920 kg

Spider lift ready to tackle the biggest jobs where size really does matter!

With a massive 43 m of working height, and over 17 m of horizontal outreach, the new Monitor 43T Spider Lift is truly a formidable weapon.

With a basket capacity of 330kg, this machine has the ability to tackle the biggest jobs where size really does matter. Enormous stabilizer leg travel allows the Monitor 43T to set up and operate in the most challenging terrain. The Monitor 43T’s powerful track drive will ensure it gets to the location with ease.

And yet, with its unique double telescopic articulated booms, this machine will also allow operators to manoeuver the basket into the work zone with fine precision.

2 Speed Drive
2-Man Platform
240 Volt Battery System
240 Volt Battery System (Optional)
240 Volt Outlet in Platform
Air & Water Outlet in Platform (Optional)
Auto-Level Stabilizer Legs
Basket Load Control
Crawler Tracks
Electric & Air Outlets in Basket (Air Optional)
Electric Controls
Electric Emergency Lowering System
Expandable Crawler Tracks
Fully Radio Control Operation (Optional)
Hydraulic Hoses Routed inside booms
Kubota Diesel Engine
Platform Rotation
Radio Control Drive
Telescopic Fly Jib

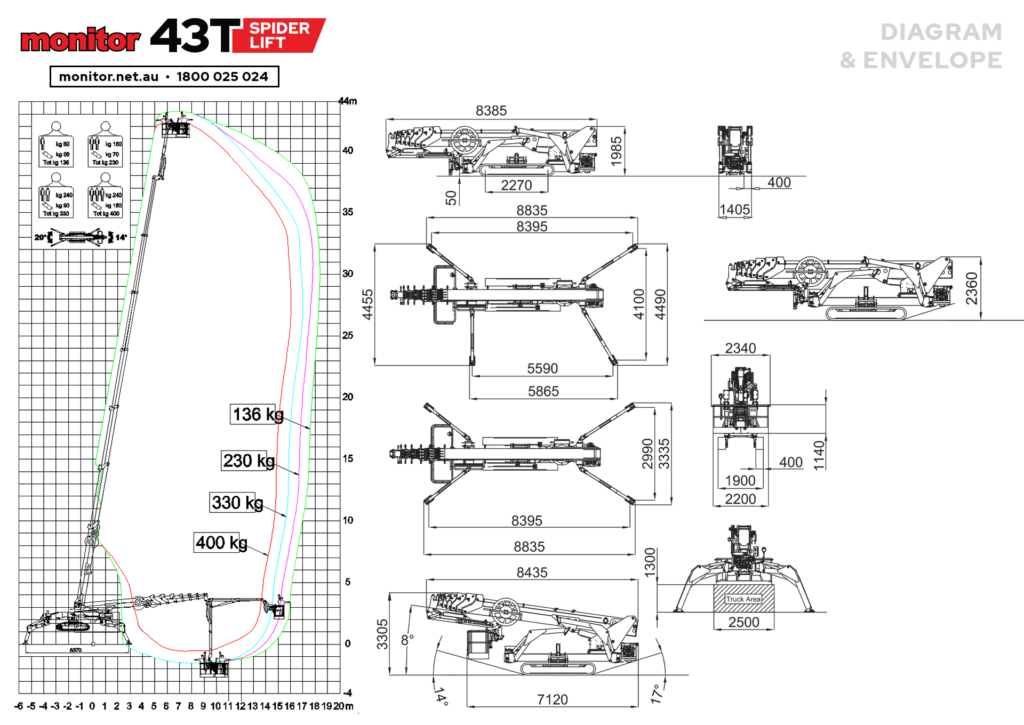

Working Range & Dimensions
